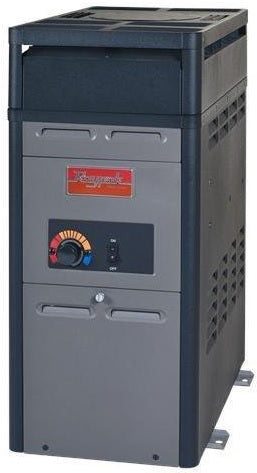

The Raypak 105K is the perfect choice for above-ground pools and spas. This may be our smallest pool and spa heater, but its built to the same exacting standards as the rest of our products. Extend your swim season, open your pool earlier and close it later. Your pool is always ready when you have a Raypak on duty.
Full BTU Input
Indoor Stack Diameter
PolyTuf Textured Powder Coating
The Raypak natural gas heater has a polyester-coated, non-corrosive cabinet that is more durable than solvent-borne and waterborne-coated metal cabinets. Every piece of sheet metal goes through a 7-stage wash system, making certain the powder paint has a perfect bond. Underneath the tough, yet beautiful finish you will find galvanized metal that offers superior rust prevention and years of durable service.
No need for fans to combat drafting problems under normal conditions. This heater is designed to draft naturally in outdoor installations with its exclusive low-profile design. It is so thoughtfully and carefully designed it actually protects itself from the things that tend to stifle ordinary pool and spa heaters. It delivers uninterrupted heating performance regardless of falling leaves, wind, airborne debris, rain, downdrafts, updrafts, sleet, snow, etc.
Prevent rust stains from harming your pool or spa’s surface, giving you years of trouble-free swimming pleasure.
All-Copper-Fin-Tube Heat Exchanger
The fin tubes of the heat exchanger are each made from a single piece of extruded copper. This integral-fin design allows maximum heat transfer to be attained and maintained. Raypak also uses thick stainless steel tube sheets for robust construction and rust free operation.
The 106 is available standard with an easy to use analog dial. The electronic ignition system requires external power (120VAC or 240VAC) and generates a pilot only when there is a call for heat. Units come with a 3 foot, 3 prong power cord.
2” Water Connections
Supplied with every Raypak 106 heater is a set of 2" flange connections to make your installation secure and effortless.
The Raypak 106 comes standard with a built in water bypass so it can handle different GPM’s without having to adjust your flow rates manually. The bypass also helps keep a constant engineered flow through the tubes to help reduce condensation caused by cold water.
Every burner tray is built to last, from the stainless steel burner deck to the aluminized metals used in the heat sensitive areas. Innovative design allows for the easy removal of the tray for servicing.
A ceramic fiber combustion box keeps your heater running efficiently while keeping the outside jacket cool. By using this space-age material the heater won't retain residual heat after it is turned off, allowing it to be installed without the use of costly metal heat sinks.
Energy-smart Raypak heaters consistently achieve the highest efficiency ratings. They meet or exceed all federal and state standards.
Please note the Raypak model 106 is not designed to meet the emissions regulations in areas requiring Low NOx levels.
Click here to download the manual
